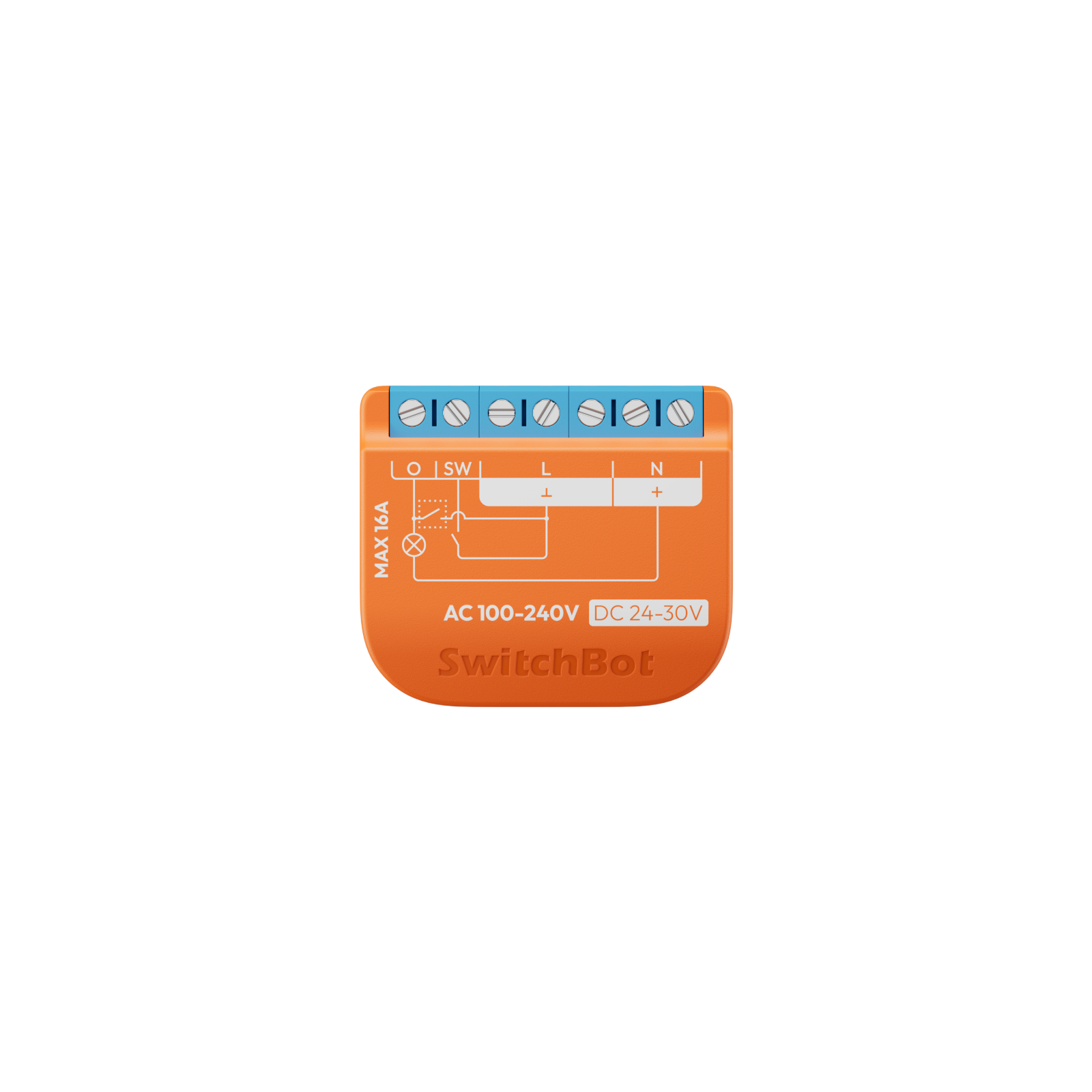

SwitchBot Relay Switch 1

A
Anton Steiner

excellent product! works fine.

-->

Quick Intro

Relay Switch 1_EN_Amazon Images_01@1x.png__PID:0d8f45e5-ff3e-4dea-bec3-201661dea985
Relay Switch 1_EN_Amazon Images_02@0.5x.png__PID:2c0d8f45-e5ff-4e2d-aafe-c3201661dea9
Relay Switch 1_EN_Amazon Images_03@0.5x.png__PID:812c0d8f-45e5-4f3e-adea-fec3201661de
Relay Switch 1_EN_Amazon Images_04@1x (1).png__PID:d59a4d25-9f8f-4994-a050-0d2cb9efd2cc
Relay Switch 1_EN_Amazon Images_05@1x.png__PID:722d812c-0d8f-45e5-bf3e-2deafec32016
Relay Switch 1_EN_Amazon Images_07_mm@1x.png__PID:d595722d-812c-4d8f-85e5-ff3e2deafec3
Relay Switch 1_EN_Amazon Images_08@1x.png__PID:12d59572-2d81-4c0d-8f45-e5ff3e2deafe
Relay Switch 1_EN_Amazon EBC_1464x600_01_PC@3x (2).png__PID:9cc07ff4-d534-4556-a14f-dd6e5cff886e
Relay Switch 1_EN_Amazon EBC_1464x600_02-1_PC@2x.png__PID:eb13a49b-6a76-48a4-b7b0-45b5be720983
Relay Switch 1_EN_Amazon EBC_1464x600_02-2℃_PC@2x.png__PID:d0f2d289-80e0-4fe7-a4ac-b2447b73ebf3
Relay Switch 1_EN_Amazon EBC_1464x600_03-1℃_PC@3x.png__PID:37b045b5-be72-4983-b26a-5aade682811c
Relay Switch 1_EN_Amazon EBC_1464x600_03-2℃_PC@1.5x.png__PID:b26a5aad-e682-411c-aca3-868f7f90ed55
Relay Switch 1_EN_Amazon EBC_3-3_PC@1.5x.png__PID:6ca3868f-7f90-4d55-bf03-8c2f917e3430
Relay Switch 1_EN_Amazon EBC_1464x600_03-4_PC@1x.png__PID:343048f4-a3f4-473b-893c-d81856375612
Relay Switch 1PM_EN_Amazon EBC_1464x600_04-1_PC@2x.png__PID:22d67b7f-7e23-4745-94b3-e1a812932508
Relay Switch 1_EN_Amazon EBC_1464x600_04-2_PC@2x.png__PID:95cec698-8fd4-4e6f-89f7-20373959f84b
Relay Switch 1_EN_Amazon EBC_4-3_PC@1.5x.png__PID:7b73ebf3-14b0-4c77-90d6-0b0a95cec698
Relay Switch 1_EN_Amazon EBC_1464x600_05-1_PC@1x.png__PID:f76af3e6-466f-4f44-a70d-516398b3878c
Relay Switch 1_EN_Amazon EBC_1464x600_05-2_PC@1x.png__PID:670d5163-98b3-478c-bfef-94f375e727ef
Relay Switch 1_EN_Amazon EBC_600x450_01_M@3x.png__PID:4fd4b0e4-150f-48d8-88de-a60cccbd34af

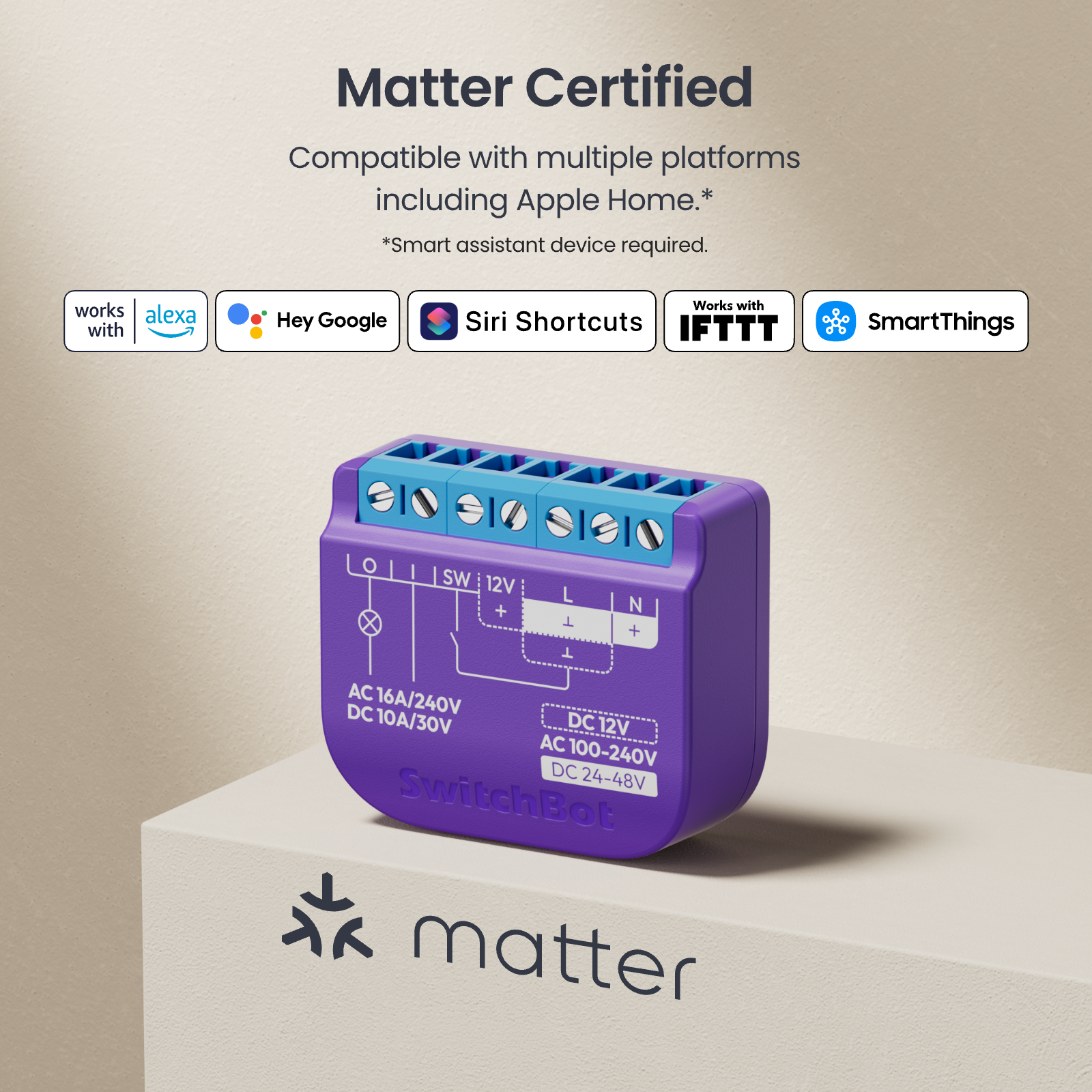

Matter Compatible

Matter devices can be consolidated and used on multiple platforms, such as Apple Home, Alexa, Google Home, and SmartThings.*

*Smart assistant device required.

Relay Switch 1PM_EN_Amazon EBC_600x450_02-1_M@3x.png__PID:d442ca5e-42de-4923-8dbe-04c5a11083a3

Integrate devices into HomeKit using Matter.

When connected to SwitchBot Relay Switch 1, two SwitchBot Bluetooth devices can support Matter and be controlled via Apple Home.

Relay Switch 1_EN_Amazon EBC_600x450_02-2℉ _M@3x.png__PID:70fec552-5b3f-4eeb-b6b6-3d916a47aef8
Relay Switch 1_EN_Amazon EBC_600x450_02-2℉ _M@3x.png__PID:70fec552-5b3f-4eeb-b6b6-3d916a47aef8
Relay Switch 1_EN_Amazon EBC_600x450_03-2℃_M@3x.png__PID:77086786-d77d-458a-b81c-2800f12722b9
Relay Switch 1_EN_Amazon EBC_3-3_M@3x.png__PID:22b9366b-0666-4a4c-a81d-b1aca1b99af0
Relay Switch 1_EN_Amazon EBC_600x450_03-4_M@3x.png__PID:9af03ed9-255a-4a78-a63a-cd4c0d213f25

Voice Control.

Operate devices hands-free with Alexa,
Siri, or Google Assistant.

Relay Switch 1PM_EN_Amazon EBC_600x450_04-1_M@1x.png__PID:cbbf8a7c-b422-4acf-a2d3-daca454af42a

Remote Control.

Control devices anytime, anywhere with Wi-Fi, or use Bluetooth for local control when the internet is temporarily unavailable.

Relay Switch 1_EN_Amazon EBC_600x450_04-2_M@3x.png__PID:3f25281f-439b-4eb3-a964-0d1e52629773

Custom Schedules.

Set schedules to automatically turn off living room lights or LED cabinet lights to save energy.

Relay Switch 1_EN_Amazon EBC_4-3_M@2x.png__PID:97734ca7-c8e0-498a-a8c7-eb5467e074c0

Safe and Reliable Design.

Automatically cuts off power in case of an emergency to ensure home safety.

Relay Switch 1PM_EN_Amazon EBC_600x450_05-2_M@3x (3).png__PID:5467e074-c087-4fac-9b0c-fff5a3848fcb

Ultra-Fast ESP32 Chip.

High-speed chip for efficient communication and processing, ensuring stable control.

Relay Switch 1PM_EN_Amazon EBC_600x450_05-3_M@3x.png__PID:6341b038-464b-499e-8caf-56a4df571e62
Air Purifier_EN_Amazon A+_600x450_03-1_M@2x.png__PID:b98c5bdc-797b-4ec7-8fae-70e4eb77d67c
Air Purifier_EN_Amazon A+_600x450_03-3_M@2x.png__PID:3ab98c5b-dc79-4b9e-870f-ae70e4eb77d6
Air Purifier_EN_Amazon A+_600x450_03-2_M@3x.png__PID:383ab98c-5bdc-497b-9ec7-0fae70e4eb77
Air Purifier_EN_Amazon A+_600x450_04_M@2x.png__PID:e8cffb35-997a-4aec-8c62-37c9a85c53f2Air Purifier_EN_Amazon A+_600x450_05_M@2x.png__PID:83fe0f80-e1ff-46c0-abe4-de4b6fbc06a9
Air Purifier_JP_Amazon A+_600x450_06-1_M@2x.png__PID:1d601250-5faf-462d-a93a-83ea814464cc
Air Purifier_JP_Amazon A+_600x450_06-2_M@2x.png__PID:571d6012-505f-4fb6-ad29-3a83ea814464
Air Purifier_EN_Amazon A+_600x450_06-3_M@2x.png__PID:f7571d60-1250-4faf-b62d-293a83ea8144
Air Purifier_EN_Amazon A+_600x450_06-4_M@2x.png__PID:72f7571d-6012-405f-afb6-2d293a83ea81
Air Purifier_EN_Amazon A+_600x450_07-1_M@2x.png__PID:054055d8-6e6b-4219-bdbe-0d3be8378e6f
Air Purifier_EN_Amazon A+_600x450_07-2_M@2x.png__PID:0e13e36a-f57e-454b-b332-901bc224b42d
Air Purifier_EN_Amazon A+_600x450_07-3_M@2x.png__PID:d15cf745-3632-44bf-a696-849d3cfaf815

Specs

Product Info

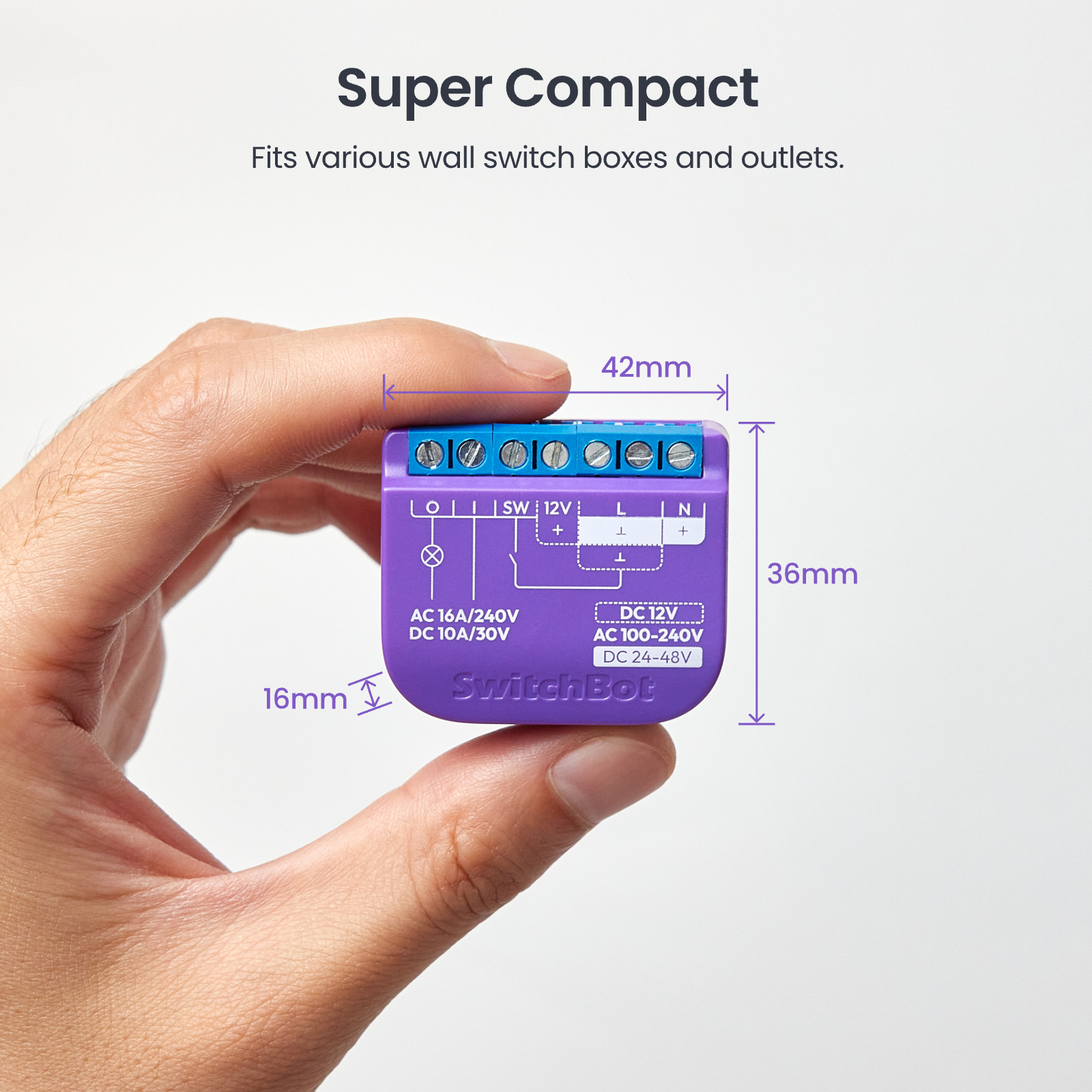

Dimensions (mm)42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)
Product WeightWeight: 27 g (0.9 oz.)
MaterialsPC
Parameter Information
Power SupplyAC Input: 100-240V 50/60Hz
DC Input: 24V-48V, 12V
Output CurrentMax AC Output Current: 16 A
Max DC Output Current: 10 A
Packing List1 * Product, 1 * Manual, 1 * Warranty Card
Connection MethodWi-Fi+BLE
Installation MethodEmbedded
Bluetooth RangeIndoor maximum range up to 10 meters / 33 feet, outdoor maximum range up to 30 meters / 100 feet (depending on local conditions)
 Wi-Fi RangeIndoor maximum range up to 30 meters / 100 feet, outdoor maximum range up to 50 meters / 160 feet (depending on local conditions)
Certification RequirementsUS: FCC
EU: CE, ROHS
Main Functions
Button FunctionControls on/off of the output: controls the turning on and off of lights, sockets, access control, etc
Power MeasurementNot supported
Overload ProtectionNot supported
Overtemperature ProtectionDisconnects output immediately when exceeding 100°C
Switch ModeCompatible with different switch types:
1. Toggle Switch: A switch with distinct 'on' and 'off' positions, ideal for traditional light switches.
2. Momentary Switch: A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems.
3. Detached Switch: The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls.
4. Edge Switch: Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.
Roller Blind ModeNot supported
Garage Door ModeNot supported
MatterYou can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app.
The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.

FAQ

How to Install SwitchBot Relay Switch 1 (Video Guide)？
What Does the Dry Contact on SwitchBot Relay Switch 1 Do?

A dry contact is essentially a relay that acts as an on/off switch without carrying any power itself, allowing it to connect or trigger other devices without interference or electrical risk. For SwitchBot Relay Switch 1, the dry contact can be easily applied to operate low-power triggers like garage doors and doorbells, allowing for remote activation of these devices. This provides a simple, flexible setup for integrating automated control in your home.

What is the Power Consumption of the SwitchBot Relay Switch?

When SwitchBot Relay Switch is in the on state, its power consumption is less than 1.2W.

Can SwitchBot Relay Switch Monitor Solar Panel Power Levels?

The SwitchBot Relay Switch 1PM includes functionality for monitoring solar panel power levels, making it an ideal choice if you need to track energy usage.

Can SwitchBot Relay Switch Measure DC Loads?

We regret to infrom you that SwitchBot Relay Switch does not support measuring DC loads.

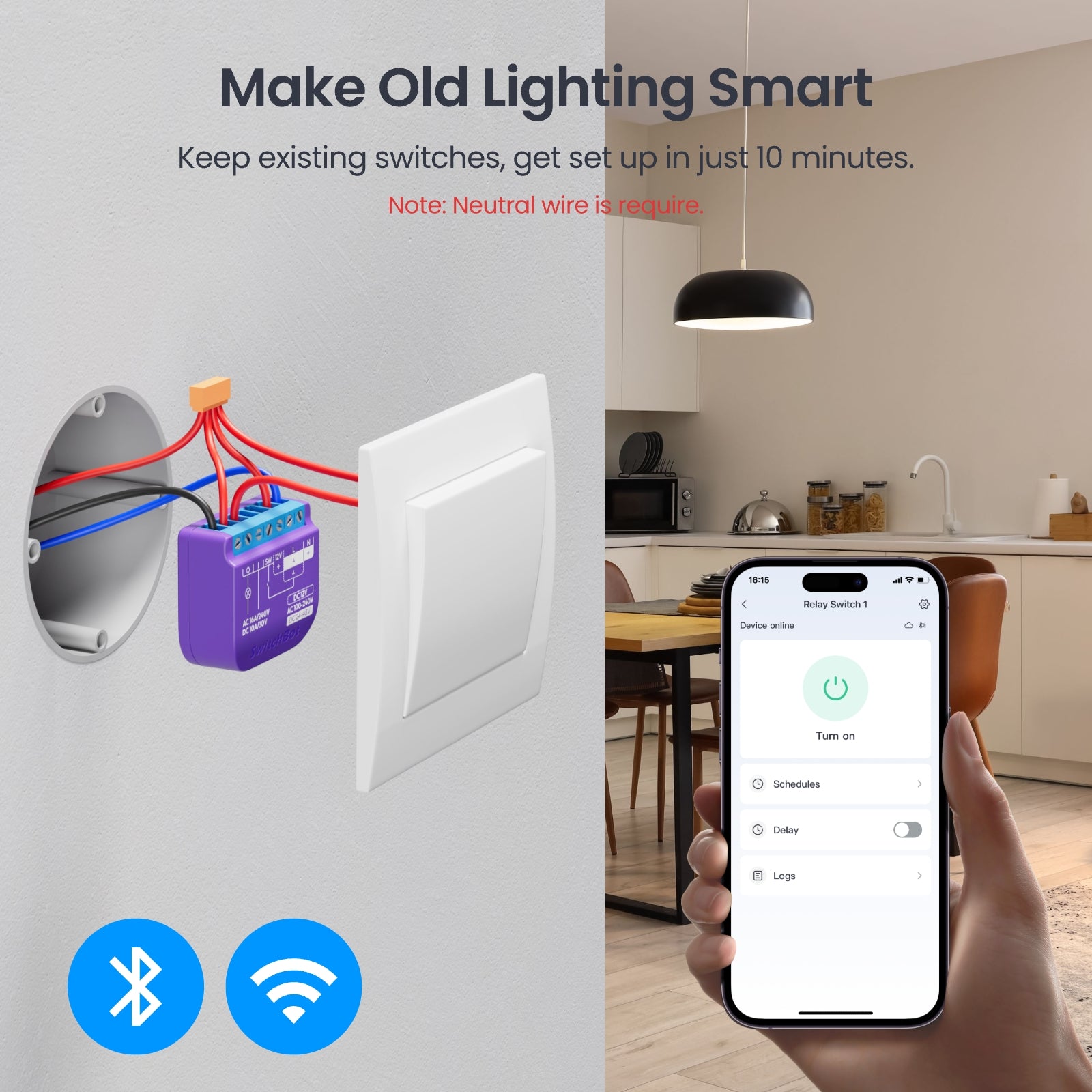

Does SwitchBot Relay Switch Require a Neutral Wire?

Yes, SwitchBot Relay Switch does require a neutral wire for proper installation and operation.

Can SwitchBot Relay Switch Be Used Outdoors?

No, SwitchBot Relay Switch is not designed for outdoor use, as it lacks waterproof and dustproof protection. For optimal performance and durability, please use it only in indoor, protected environments.
